This maybe looks like multiple bugs, but it is caused by one mistake, so I report it as one ticket.
What happened?
As we know, the 3D biome generation is controlled by six noise parameters from density functions. In a six-dimensional space, some intervals are defined. If the parameter point falls in a certain interval, the corresponding biome will be generated. If not, it searches the nearest interval.
This is reasonable, unless there are two intervals that overlap — it will be difficult for the game to decide which to generate.
However, in vanilla, the intervals for lush caves and dripstone caves do overlap. Here are their definations in the json format:
{
"biome": "minecraft:dripstone_caves",
"parameters": {
"temperature": [-1, 1],
"humidity": [-1, 1],
"continentalness": [0.8, 1],
"erosion": [-1, 1],
"weirdness": [-1, 1],
"depth": [0.2, 0.9],
"offset": 0
}
},
{
"biome": "minecraft:lush_caves",
"parameters": {
"temperature": [-1, 1],
"humidity": [0.7, 1],
"continentalness": [-1, 1],
"erosion": [-1, 1],
"weirdness": [-1, 1],
"depth": [0.2, 0.9],
"offset": 0
}
}{
"biome": "minecraft:dripstone_caves",
"parameters": {
"temperature": [-1, 1],
"humidity": [-1, 1],
"continentalness": [0.8, 1],
"erosion": [-1, 1],
"weirdness": [-1, 1],
"depth": [0.2, 0.9],
"offset": 0
}
},
{
"biome": "minecraft:lush_caves",
"parameters": {
"temperature": [-1, 1],
"humidity": [0.7, 1],
"continentalness": [-1, 1],
"erosion": [-1, 1],
"weirdness": [-1, 1],
"depth": [0.2, 0.9],
"offset": 0
}

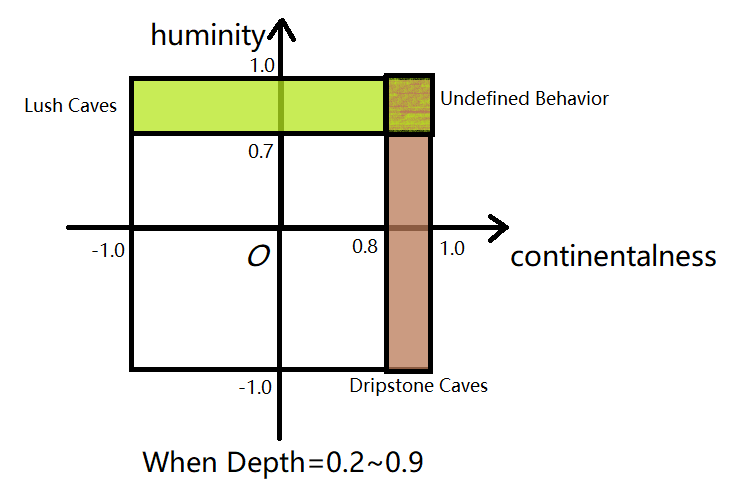

}It is clear that the overlapping region is when continentalness is 0.8~1 and humidity is 0.7~1. As this picture shows (typo: huminity->humidity):
What are the effects of this?
For parameter points falling into the overlapping region, the biome generation is an undefined behavior. Sometimes lush caves and sometimes dripstone caves are generated. Two sides of a chunk border may have different biomes.
"/locate biome" doesn't work correctly for places whose parameters fall into the overlapping region.
Potential issues about different biome generations with the same world seed
Potential parity issues with Bedrock Edition
Examples for reproducing:
Biome generation:
Example 1
Seed: 514
Coords: /tp 1557950 25 -24433376
Press F3+G to enable chunk border displaying; Press F3 to enable debug screen
At (1557950,25,-24433376) and (1557950,25,-24433375), which are in two biome cells on different sides of the border
Found that the two biome cells have different biomes, though both these parameters fall into the overlapping region.
Example 2
Seed: 514
Coords: /tp -18198579 19 -17221302
Around (-18198579,19,-17221302)
Found that in a canyon, a chunk of dripstone caves is surrounded by two chunks of lush caves, though in the canyon, parameters of all these three fall into the overlapping region.
[media]
/locate biome:
Seed: 514
Coords: /tp -18198579 19 -17221302
Stay at -18198579,19,-17221302, and do not move
Run "/locate biome dripstone_caves"
Run "/locate biome dripstone_caves" again
Run "/locate biome dripstone_caves" again
Run "/locate biome lush_caves"
Run "/locate biome lush_caves" again
Run "/locate biome dripstone_caves"
Run "/locate biome lush_caves"
Found that the /locate biome works incorrectly in the overlapping region
[media]
Attachments
Comments 3
What is the file path to the cited code? I cannot seem to find it, and the full information would be helpful for some types of data packs.
To Healex:
It's hardcoded but its json definition can be generated through vanilla data generator (https://minecraft.wiki/w/Tutorials/Running_the_data_generator), and then is located at generated/reports/biome_parameters.
For custom world generation, it should be placed in biomes field of biome_source in custom dimension/world preset, see https://minecraft.wiki/w/Custom_dimension#Dimension
another example: Seed: 514, Coords: /tp -1531 -38 290364
